700 Series 1-¼”

Wagner Engineering is committed to helping you maintain your vessel's steering. We have a large inventory of 700 Series parts available at reasonable prices for immediate shipment. Parts not available off the shelf can usually be manufactured within a short time. Please contact your dealer or Wagner Engineering for details.

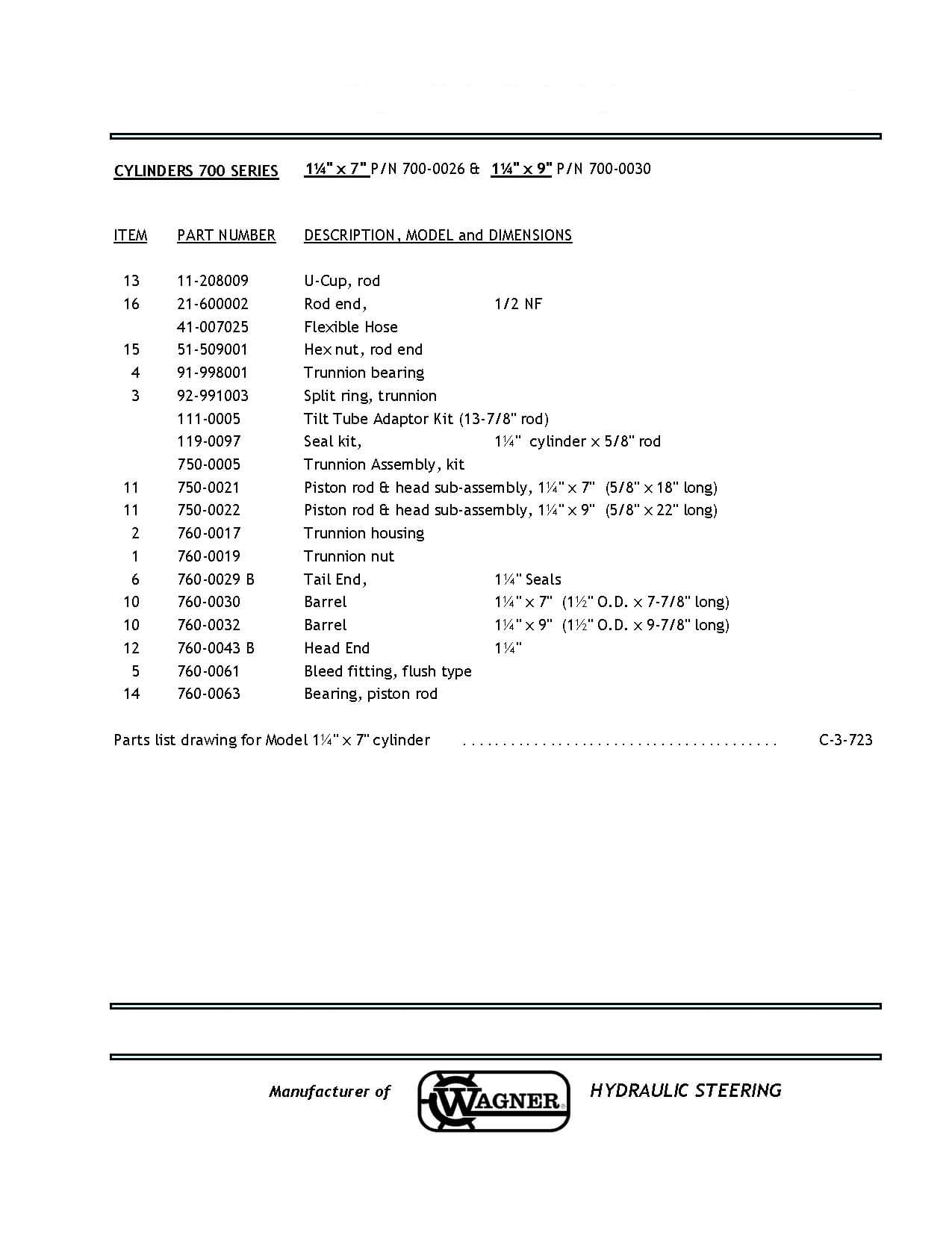

Assembly (tap or hover over diagram to zoom)

700 Series Assembly Diagram

Parts Available

Wagner Engineering is committed to helping you maintain your vessel's steering. Please contact your dealer for details.

SEAL KIT

ITEMPART NUMBERDESCRIPTION
7, 8, 9, 13WA-119-0097700 Series 1-1/4" cylinder seal kit includes the following seals:
  • 2x O-ring PN JB-201024
  • 2x O-ring PN JB-201028
  • 2x O-ring PN JB-201114
  • 2x O-ring PN JB-201214
  • 1x Wear strip JM-111010-1
  • 2x Washer PN WA-10-800021
  • 2x Washer PN WA-10-800067
  • 2x U-cup PN WA-11-206001
  • 2x U-cup PN WA-11-208009

Our dealers carry inventory and parts can be ordered from your local dealer.
