Model N300
Overview
Wagner Type N cylinders are strong, compact and durable. Construction is from corrosion resistant materials while all bearing surfaces are over sized for longevity. The ball and rod end combination make for simple alignment on installation.
Specification
Data is for a working pressure of 1,000 psi and rudder angle of ± 35°
| N300-400 | N300-630 | |
|---|---|---|
| Stroke (in) | 8.73 | 13.76 |
| Torque (ft.lb) | 2893 | 4557 |
| Displacement (in3) | 48.6 | 76.6 |
| A (in) (MIN/MAX) | 23.49/32.25 | 28.6/42.36 |
| B (in) (MAX) | 10.17 | 15.29 |
| C (in) | 4.50 | |
| D (in) | 3.70 | |
| Ø E (in) | 1.0 | |
| Ø F (in) | 0.625 | |
| G (in) | 2.59 | |
| H (in) | 4.32 | |
| I | SAE ORB -08 | |
List Pricing
| Description | CAD ($) | USD ($) |
|---|---|---|
| N300-400 | 2,508.00 | 2,634.00 |
| N300-630 | 2,628.00 | 2,760.00 |
Note *2: Our dealers also carry inventory and can also be ordered from your local dealer. Local dealers may also sell for less.

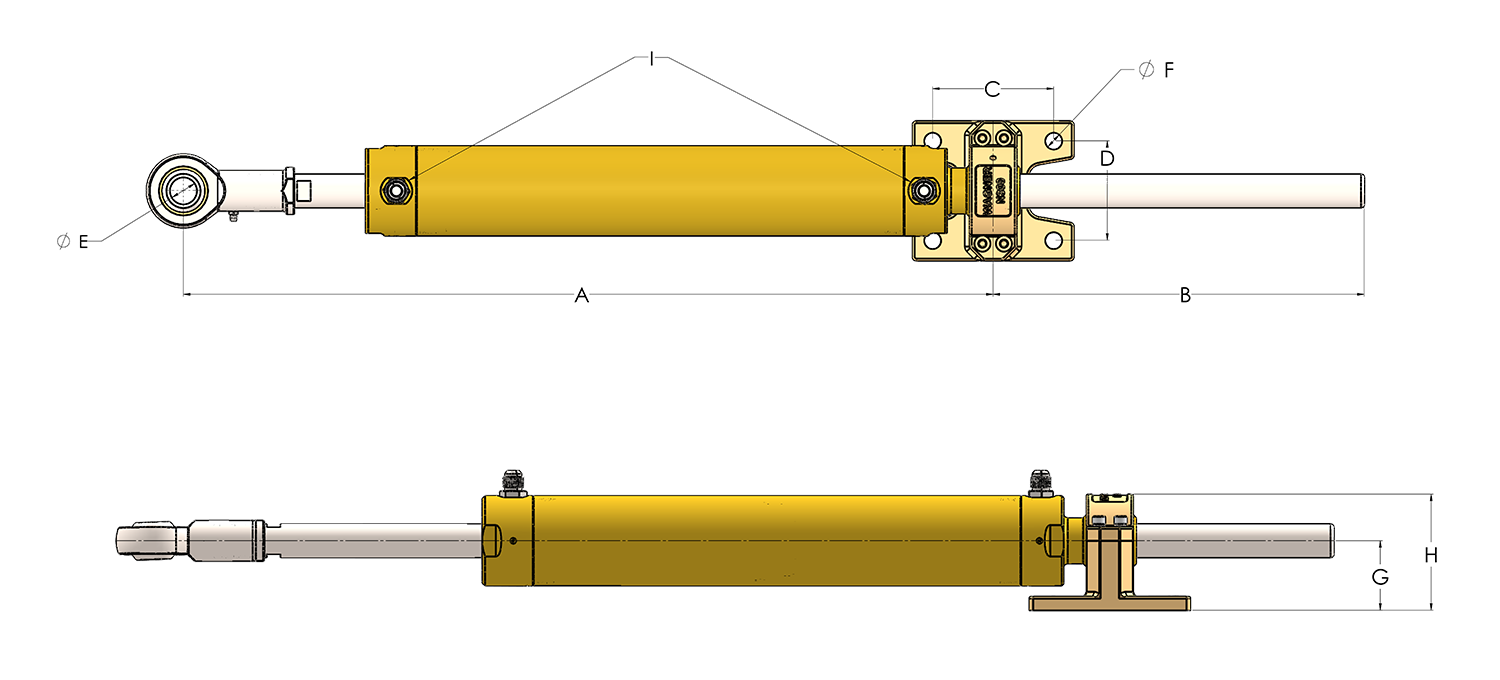

Diagram (tap or hover over diagram to zoom)

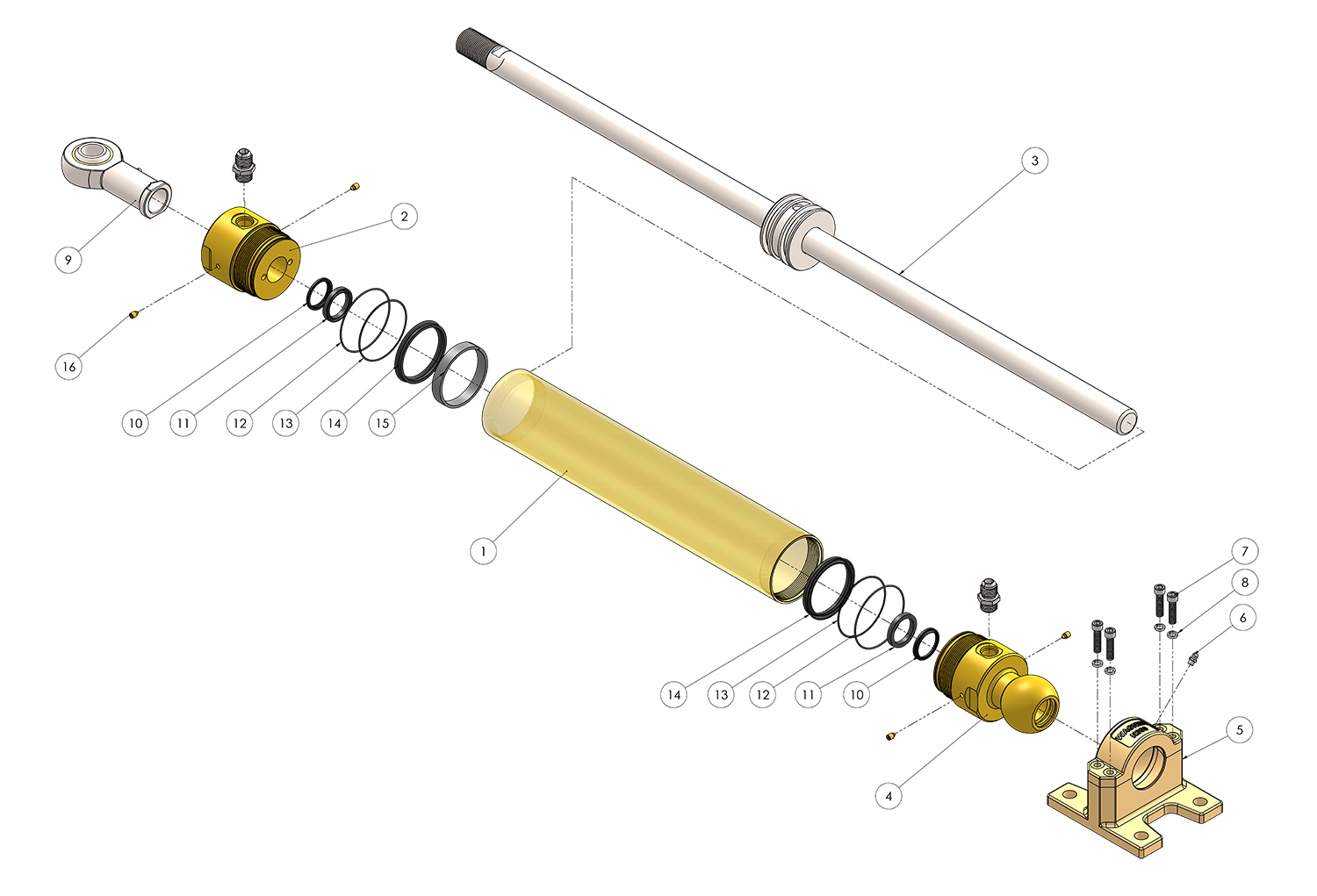

Parts Available
We have all of the parts listed below available for same day shipment from our factory at competitive list prices. To order simply call Wagner Engineering at +1-(604)-988-1111 ext 148
Our dealers also carry inventory and all of these parts can also be ordered from your local dealer. Local dealers may also sell for less.
| ITEM | PART NUMBER | DESCRIPTION |
|---|---|---|
| 1 | JM-111070-1/2 | Barrel |
| 2 | JM-111068-1 | Cylinder Head |
| 3 | JA-101040-1/2 | Piston Rod Assembly |
| 4 | JM-111069-1 | Cylinder Tail |
| 5 | JM-111073-1 | Trunnion Housing |
| 6 | JB-512004 | S.S. Grease Nipple |
| 7 | JB-306089 | Screw, Socket Head Cap |
| 8 | JB-325006 | Lockwasher |
| 9 | JB-407008 | Rod End |
| 10 | JB-208010 | Rod Wiper |
| 11 | JB-205018 | U-Cup |
| 12 | JB-219040 | O-Ring |
| 13 | JB-219028 | O-Ring |
| 14 | JB-205019 | Seal, U-Cup |
| 15 | JB-216002 | Wear Ring |
| 16 | JM-111000-1 | Cylinder Bleed Fitting |
Prices are ex-works North Vancouver, British Columbia. Shipping and handling charges will depend on location and service required.
If you are looking for a part that isn't listed on this page, please inquire directly to Wagner Engineering at +1-(604)-988-1111 ext 148 or at one of your local dealers.
